Product Overview
GYTZS Outdoor Fire Retardant Fiber Optic Cable / Flame retardant optical cable Product DescriptionGYTZA type optical cable places 250 μm optical fiber in a loose sleeve made of high modulus plastic, the sleeve is filled with waterproof filler, the center is steel wire as a metal reinforcement, and t
GYTZS Outdoor Fire Retardant Fiber Optic Cable / Flame retardant optical cable Product Description
GYTZA type optical cable places 250 μm optical fiber in a loose sleeve made of high modulus plastic, the sleeve is filled with waterproof filler, the center is steel wire as a metal reinforcement, and the high-core cable is sometimes coated with PE. The sleeve and filler are twisted around the reinforcement to form a compact circular cable core. The cable core is covered with PSP and filled with waterproof filler. Finally, the flame-retardant PE sheath is used to form the cable.
GYTZS Outdoor Fire Retardant Fiber Optic Cable / Flame retardant optical cable
Good mechanical properties, good high temperature resistance
High-strength loose casing, resistant to hydrolysis
Special casing fillers play a key role in protecting optical fibers
Specially designed compact structure prevents loose casing shrinkage
Flame retardant outer sheath to protect optical fibers from fire
PSP enhanced moisture resistance
GYTZS Outdoor Fire Retardant Fiber Optic Cable / Flame retardant optical cable application:
Pipeline, overhead, direct burial.
*data is too long, please view it in horizontal mode.
| G.652 | G.655 | 50 / 125μm | 62.5 / 125μm | ||
|---|---|---|---|---|---|
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
| Storage/Operating temperature | -40℃ ~ +70℃ | ||||
| Model | Fiber cores | Tubes | Fillers | Diameter (mm) | Weight (kgs) | Tensile (N) | Crush (N) | Bending radius | ||
| Long term | Short term | Long term | Short term | Static
/Dynamic | ||||||
| GYTZS-2~6F | 2~6 | 1 | 4 | 9.7 | 135 | 600 | 1500 | 300 | 1000 | 10D/20D |
| GYTZS-8~12F | 8~12 | 2 | 3 | 9.7 | 135 | 600 | 1500 | 300 | 1000 | 10D/20D |
| GYTZS-14~18F | 14~18 | 3 | 2 | 9.7 | 135 | 600 | 1500 | 300 | 1000 | 10D/20D |
| GYTZS-20~24F | 20~24 | 4 | 1 | 9.7 | 135 | 600 | 1500 | 300 | 1000 | 10D/20D |
| GYTZS-26~30F | 26~30 | 5 | 9.7 | 135 | 600 | 1500 | 300 | 1000 | 10D/20D | |
| GYTZS-32~36F | 32~36 | 6 | 10.2 | 147 | 1000 | 3000 | 300 | 1000 | 10D/20D | |
| GYTZS-38~48F | 38~48 | 4 | 1 | 11.2 | 167 | 1000 | 3000 | 300 | 1000 | 10D/20D |
| GYTZS-50~60F | 50~60 | 5 | 11.2 | 167 | 1000 | 3000 | 300 | 1000 | 10D/20D | |
| GYTZS-62~72F | 62~72 | 6 | 12.2 | 189 | 1000 | 3000 | 300 | 1000 | 10D/20D | |
| GYTZS-74~84F | 74~84 | 7 | 1 | 13.8 | 231 | 1000 | 3000 | 300 | 1000 | 10D/20D |
| GYTZS-86~96F | 86~96 | 8 | 13.8 | 231 | 1000 | 3000 | 300 | 1000 | 10D/20D | |
| GYTZS-98~108F | 98~108 | 9 | 1 | 15.2 | 271 | 1000 | 3000 | 300 | 1000 | 10D/20D |
| GYTZS-110~120F | 110~120 | 10 | 15.2 | 271 | 1000 | 3000 | 300 | 1000 | 10D/20D | |
| GYTZS-122~132F | 122~132 | 11 | 1 | 17.1 | 327 | 1000 | 3000 | 300 | 1000 | 10D/20D |
| GYTZS-134~144F | 134~144 | 12 | 17.1 | 327 | 1000 | 3000 | 300 | 1000 | 10D/20D | |
Prev：GYXTC8S G652D/G657 Self-supporting Fig 8 Aerial Outdoor Fibe
Return to List Next：GYXTC-8Y Fiber Optical Cable, G652D/G657, Self-supporting ,F
Online Message
Optic CableExcellent tensile strength and crush-resistance.Compact, easy-to-access design allows for easy installation and handling.Proven all-dielectric loose tube construction Immune to electromagnetic fields.Optimized for fiber counts of 4, 6, 8, 12and 24 for minimizing deployment costs.Outer Jac
Details
Advantages of Flat Fiber Optic CableExcellent tensile strength and crush-resistance.Compact, easy-to-access design allows for easy installation and handling.Suitable for self-supporting aerial, direct buried, and duct FTTx drop installations.All-dielectric construction eliminates the need for bondin
Details

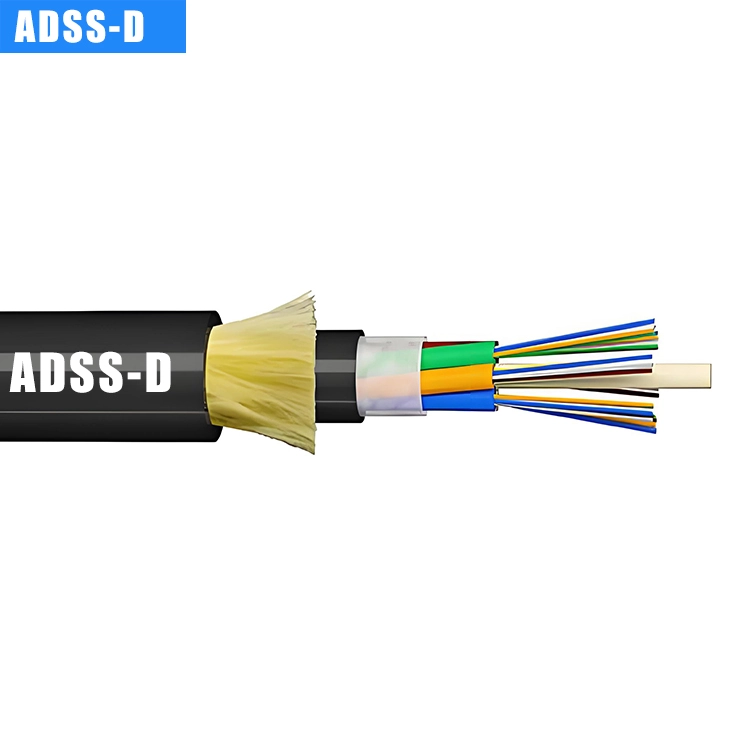

ADSS double-Jacket all-dielectric self-supporting optical cable Description ADSS cable is loose tube stranded fibers 250um, are positioned into a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP as
