Product Overview

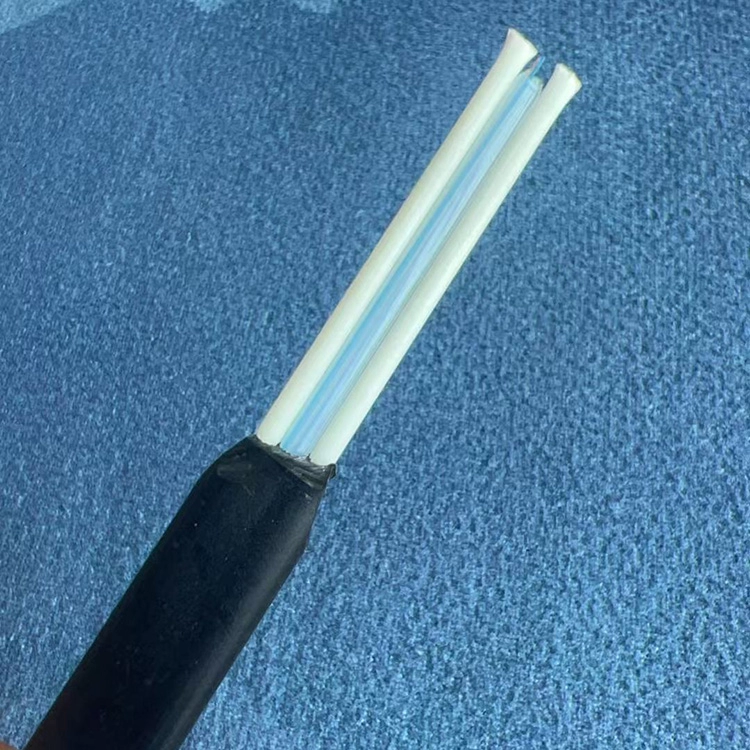

Advantages of Flat Fiber Optic CableExcellent tensile strength and crush-resistance.Compact, easy-to-access design allows for easy installation and handling.Suitable for self-supporting aerial, direct buried, and duct FTTx drop installations.All-dielectric construction eliminates the need for bondin
Excellent tensile strength and crush-resistance.
Compact, easy-to-access design allows for easy installation and handling.

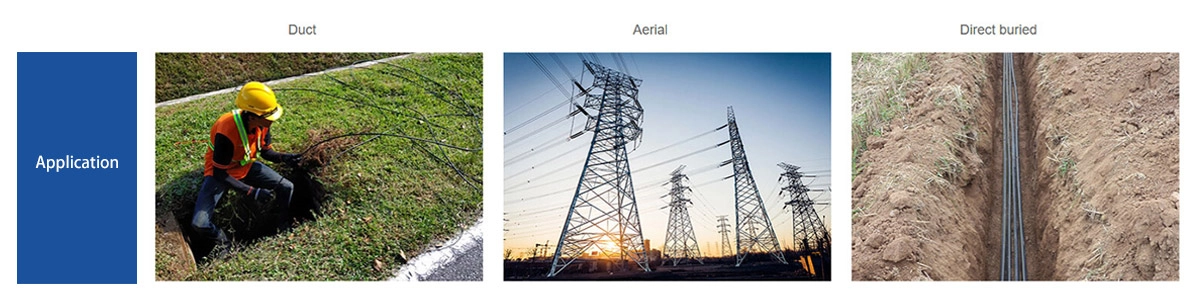

Suitable for self-supporting aerial, direct buried, and duct FTTx drop installations.
All-dielectric construction eliminates the need for bonding or grounding.
Optimized for fiber counts of 2,4, 6, 8, 12and 24 for minimizing deployment costs.
Outer Jacket protects cable from ultraviolet radiation.
| outer diameter (MM) | FRP size (MM) | Cores Number | weight (KGS/KM) | Price(RMB/KM) |
|---|---|---|---|---|
| 3.8 × 8.1 | 2.0 × 2 | 2 | 35.2 | Inquire Now |
| 3.8 × 8.1 | 2.0 × 2 | 4 | 35.3 | Inquire Now |
| 3.8 × 8.1 | 2.0 × 2 | 8 | 35.4 | Inquire Now |
| 3.8 × 8.1 | 2.0 × 2 | 12 | 35.5 | Inquire Now |
* The data below is too long. You can view all the data in horizontal mode on your mobile phone.
| Fiber Count | 1-12 | 16-24 | |||
|---|---|---|---|---|---|
| Loose Tube | Number | 1 | 1 | 2 | |
| Material | PBT | ||||
| Strength Member | FRP Glass Fibers Stick | ||||
| Strength Member Diameter | 2.0 mm | 2.0 mm | 2.0 mm | 2.0 mm | |
| Outer Jacket | Material | HDPE | |||
| Color | Black or Other Colors | ||||
| Thickness (mm) | 1.0 ± 0.1 | ||||
| Maximum Tensile Strength | 1200 N | ||||
| Maximum Crush Resistance | 600 N/100 mm | ||||
| Cable Diameter (mm) ± 0.3 | 3.8 × 8.1 | 3.8 × 8.1 | 4.0 × 9.5 | 4.0 × 9.5 | |
| Net weight (kg/km) ± 10% | 38 | 38 | 40 | 48 | |
| Static Bending Radius | 10 D | ||||
| Dynamic Bending Radius | 20 D | ||||
| Operating Temperature | -40 ℃ ~ +70 ℃ | ||||
| Store/Transport Temperature | -40 ℃ ~ +70 ℃ | ||||
| Installation Temperature | -10 ℃ ~ +60 ℃ | ||||
| NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tube Color | White | |||||||||||
| NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Fiber Color | Blue | Orange | Green | Brown | Gray | White | Red | Black | Yellow | Violet | Pink | Aqua |
| Optical Fiber Type | Attenuation Coefficient (+20 ℃) | OFL Bandwidth | Numerical value | Cable cut-off wavelength | |||||
|---|---|---|---|---|---|---|---|---|---|
| @850 nm | @1300 nm | @1310 nm | @1550 nm | @1625 nm | @850 nm | @1300 nm | |||
| G.652D | / | / | ≤ 0.36 dB/km | ≤ 0.22 dB/km | / | / | / | / | ≤ 1260 nm |
| G.655C | / | / | / | / | ≤ 0.22 dB/km | ≤ 0.24 dB/km | / | / | ≤ 1450 nm |
| G.657A | / | / | ≤ 0.36 dB/km | ≤ 0.22 dB/km | ≤ 0.23 dB/km | / | / | / | ≤ 1260 nm |
| 50 / 125 | ≤ 3.0 dB/km | ≤ 1.0 dB/km | / | / | / | ≥ 500 MHz·km | ≥ 500 MHz·km | 0.200 ± 0.015 NA | / |
| 62.5/125 & mu; m | ≤ 3.0 dB/km | ≤ 1.0 dB/km | / | / | / | ≥ 200 MHz·km | ≥ 500 MHz·km | 0.275 ± 0.015 NA | / |
Prev：ADSS Double-Jacket ,2-288 Cores ,all-dielectric self-support
Return to List Next：ASU80 1-12 Core ,Mini ADSS, Fiber Optical Cable, G652D/G655
Online Message

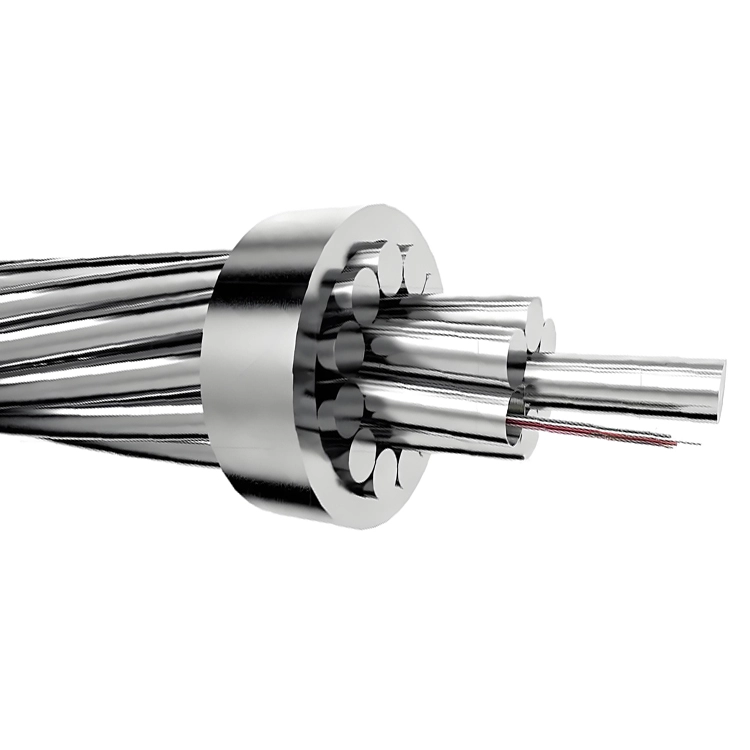

OPGW Cable Extended InfoApplications:Ideal for replacing existing ground wires and upgrading aging transmission lines.Suitable for use on lower-grade lines such as GJ50/70/90, among others.Main Features:Compact cable diameter and lightweight design minimize additional load on towers.Centralized stee
Details

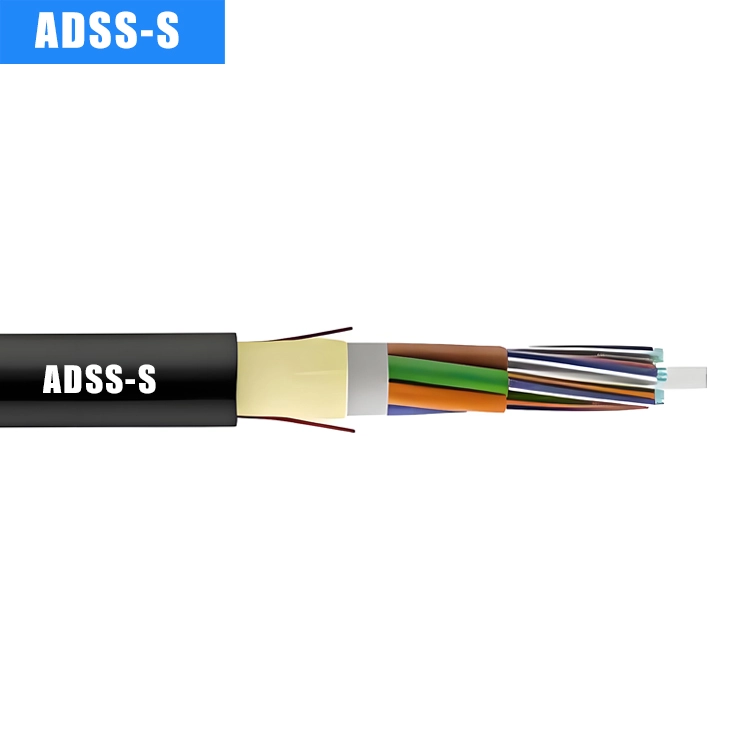

Structure Design:Applications: Aerial, Overhead, OutdoorMain Features:High quality IEC607948 IEEE1138 standards for designing, testing, and producing with grade A materials available to ensure long-term reliability.Engineering support supervising and providing its own line of accessories hardware.Se
