1 * 2 PLC micro-beam splitter, steel tube SC/UPC splitter, telecom grade, no connector

PLC 1 * 2 Micro Beamsplitter, Steel Tube SC/UPC Splitter, Telecom Grade, No Connector Product Detailed Introduction and Features

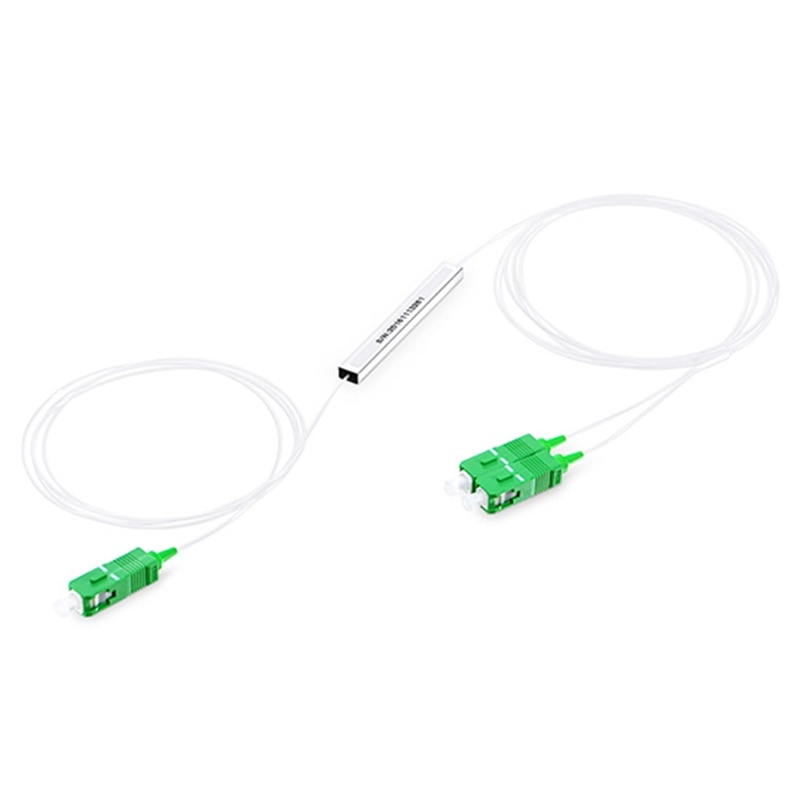

1. PLC 1 * 2 miniature splitter, steel tube SC/UPC splitter product overview

PLC 1x2 Mini Tube Splitters It is a compact optical splitter based on planar optical waveguide (PLC) technology, specially designed for scenarios where a single optical signal needs to be evenly divided into two outputs. Its "Mini Tube" package is protected by small steel pipe or heat shrinkable tube, which is small in size and easy to install in narrow spaces such as fiber optic cable handover boxes, fiber optic distribution frames or outdoor joint boxes. It is widely used in fiber-to-the-home (FTTH), local area network (LAN) and fiber optic sensing systems.

Second, PLC 1 * 2 micro beam splitter, core features

1. High spectral uniformity
   • Adopt PLC technology to ensure that the difference (uniformity) of the two output optical powers is less than or equal to 0.4dB, and the signal quality is stable.
2. Low insertion loss
   • Typical insertion loss: ≤ 3.8dB (including connectors), optimizing optical signal transmission efficiency.
3. Wide wavelength support
   • Operating wavelength range: 1260-1650nm, compatible with single-mode fiber (G.652D/G.657A, etc.).
4. Compact and durable design

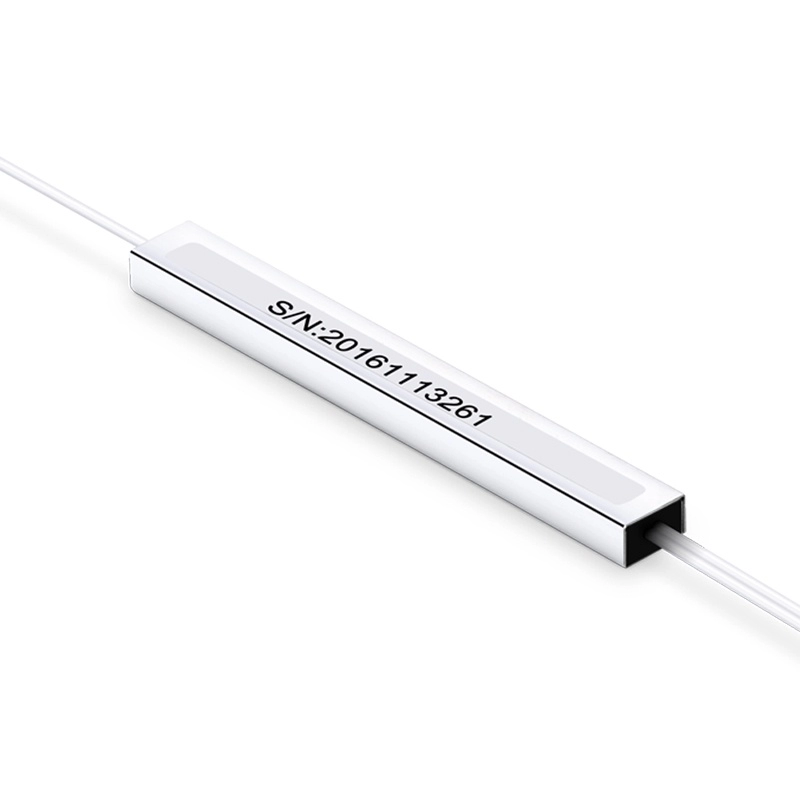

   • packageSteel pipes or heat shrinkable pipes with a diameter of less than or equal to 3mm are protected against stretching and lateral pressure.

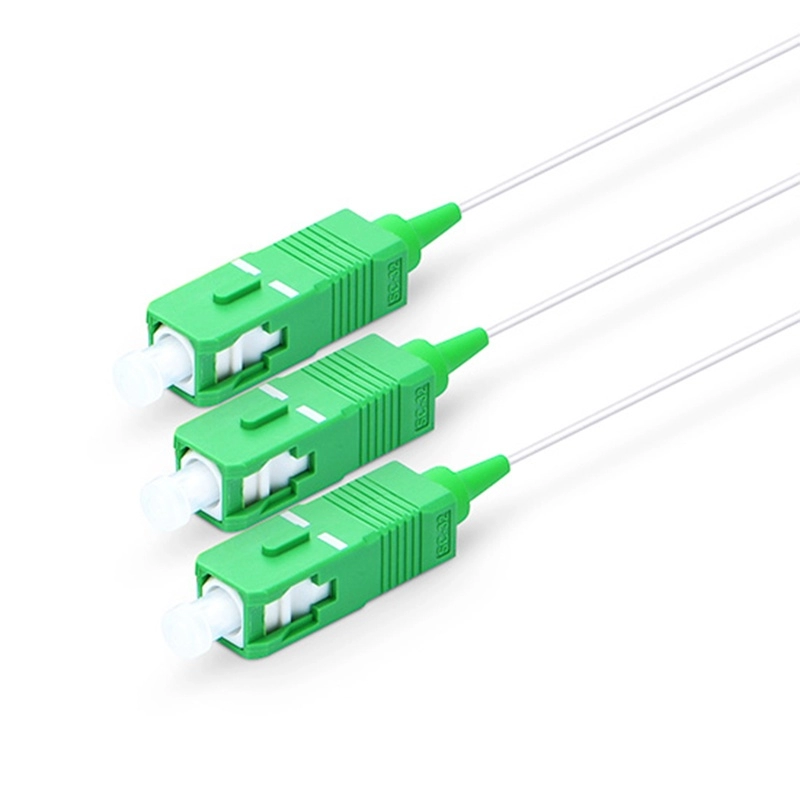

   • connectorSupport SC/APC, LC/APC and other interfaces to adapt to different equipment requirements.
5. Environmental adaptability
   • Operating temperature: -40 ° C to + 85 ° C, suitable for indoor and outdoor complex environments.
   • Compliant with standards: Telcordia GR-1221, RoHS, CE certification.

III.PLC 1 * 2 micro beam splitter, steel tube type SC/UPC splitter

Technical parameters

IV.PLC 1 * 2 micro beam splitter, steel tube type SC/UPC splitterTypical application scenarios

1. FTTH network: Split light into the home, support dual household or dual device access.
2. security monitoring: One video signal is divided into a monitoring center and local storage.
3. Optical fiber sensingSignal shunt monitoring in distributed sensing systems.
4. Industrial networkDevice redundancy backup or dual-node communication.

V. Summary of advantages

• cost-effectivenessCompared with mechanical splitters, PLC technology has lower cost and higher reliability.
• Easy to deploy: Pre-packaged design to support quick installation on site.
• Flexible expansion: Multiple 1x2 splitters can be cascaded to achieve more splitting.

By combining the precision spectroscopy of PLC technology with the compact design of the Mini Tube package, this product provides an efficient and stable solution for scenarios requiring dual optical signal distribution.
