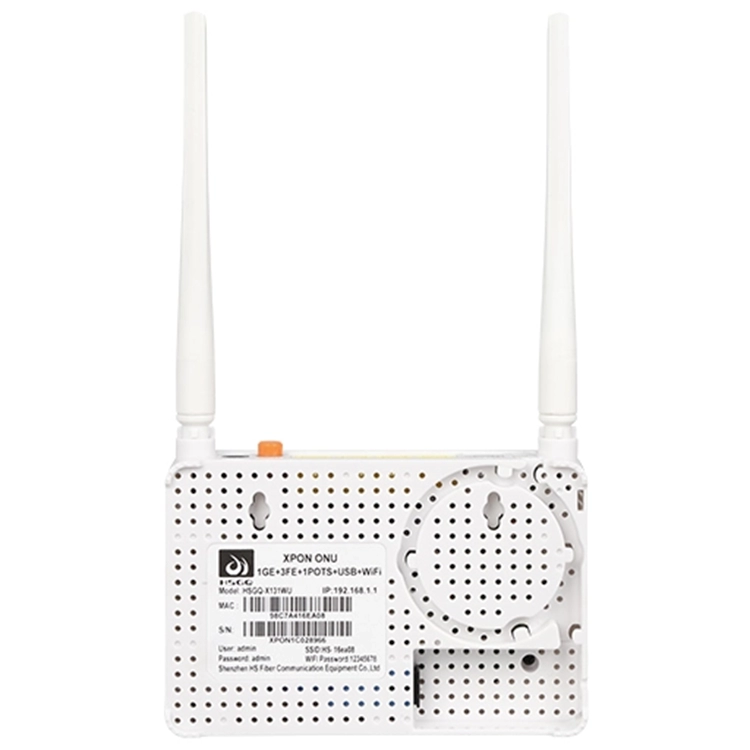

1GE+3FE+1POTS+1USB+2.4G wifi(300M)XPON ONU

Product Overview

1GE+3FE+1POTS+1USB+2 .4G wifi (300M)XPON ONU (EPON ONU 300M XPON)This advanced networking device delivers robust connectivity, security, and management capabilities tailored for modern network demands. Technical ParameterUser interface1 * 10 / 100 / 1000MRJ453*10/100M RJ451*POTS1*USB2.4G WiFiPONEPON

Product Model：300M XPON ONU

Update Time：2025-03-28

Manufacturer Type：

Traffic：

Fiber Core Count：

Outer Jacket：

Standard：

Inquiry Now

1GE+3FE+1POTS+1USB+2.4G wifi(300M)XPON ONUDetailed Introduction

Online Message

1GE+3FE+1POTS+1USB+2 .4G wifi (300M)XPON ONU (EPON ONU 300M XPON)

This advanced networking device delivers robust connectivity, security, and management capabilities tailored for modern network demands.

Technical Parameter

User interface	1 * 10 / 100 / 1000MRJ45 310/100M RJ45 1POTS 1*USB 2.4G WiFi
PON	EPON&GPON mode adaptive lnterface Type:SC-UPC/SC-APC Network coverage radius: 20KM GPON: upstream 1.25Gbps /downstream 2.5Gbps Transmission optical power: 0.5dBm~5dBm Optical receive sensitivity:-7dBm~-28dBm EPON: upstream 1.25Gbps /downstream 1.25Gbps Transmission optical power: 0dBm~0.4dBm Optical receive sensitivity:-7dBm~-27dBm
Ethernet	110/100/1000M+310/100M auto-negotiation Full/half duplex mode RJ45 connector Car MDI/MDI-X 100m distance
Size	140mm(L)×90mm(W)×30mm(H)
Environment	Operating temperature:0°C~60℃ Operating humidity:10%～85% non-condensing Storage temperature:-40℃～80℃ Storage humidity:5%~95% non-condensing
Power supply	12V/1A DC power interface size:2.1mm/5.5mm
Power Consumption
POTS Port	1*RJ11 with 3REN Max 1km distance Balanced Ring,55VRMS
Man	WEB/TELNET/TR069/ONUI/OAM

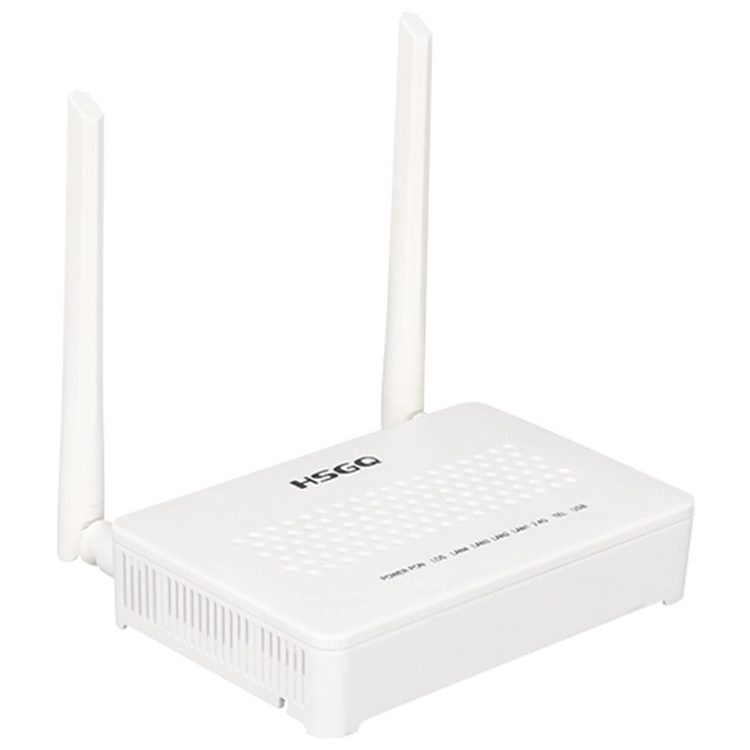

Product Interfaces

POWER

Power status

On: The ONU is power on

Off: The ONU is Power off

PON

ONU Register

On: Success to register to OLT

Blinking: In process of registering to OLT

Off: Fail to register to OLT

LOS

Optical Signals

On: Optical power lower than receiver sensitivity

Off: Optical in normal

LAN

LAN Port status

On:Ethernet connection is normal

Blinking: Data is being transmitted

Off: Ethernet connection is not set up

2.4G

WIFI

On: Wi - Fi function Opens

Blinking: Data is being transmitted

Off: Wi - Fi functions closes

POTS

POTS status

On: POTS port Registered

Off: POTS port not Registered

Key Features

Core functionalities include:

Traffic Optimization & Security
- Granular device-level bandwidth throttling and rate control.
- Comprehensive security suite: data encryption, port VLAN isolation, and ACL-based packet filtering.
- Broadcast storm suppression to prevent network congestion.
Standards Compliance
- Optical network compliance: IEEE 802.3ah and ITU-T G.984 (GPON).
- Wi-Fi modules support 802.11n/b/g (2.4GHz band) with enhanced legacy device compatibility.
Optical Network Performance
- Extended reach up to 20KM for fiber deployments.
- Dynamic Bandwidth Allocation (DBA) and ONU auto-discovery for efficient resource management.
- Remote software upgrades, link status monitoring, and power failure alerts.
Advanced Network Configuration
- QoS policies, port binding, and forwarding for traffic prioritization.
- VLAN configuration per port and redundancy design to ensure 99.99% system stability.
Integrated Services
- Multi-service support: PPPoE/DHCP Server, IPTV, VoIP, and NAT.
- TR-069 protocol for seamless integration with Auto Configuration Servers (ACS).

Voice Service Functions

Designed for high-quality VoIP and POTS integration:

Protocol Support: SIP, H.248, MGCP interoperability with mainstream softswitch platforms.
Fax/Modem: T.38 fax relay, 56Kbps modem dial-up, and RFC2833 redundancy for call clarity.
Advanced Features: Call forwarding, waiting, hotline, 7-party conference, and 24/7 line testing (GR909).
Audio Codecs: ITU-T G.711, G.723.1, and echo cancellation (128ms tail length).
Reliability:

Wi-Fi Features (2.4GHz)

Performance: 802.11n dual-stream spatial multiplexing (up to 300Mbps PHY rate).
Multi-SSID: Up to 4 SSIDs for segmented networks (e.g., guest/IoT/private).
Security: 64/128-bit WEP, WPA/WPA2, and 802.1x authentication.
Management: Auto-channel selection, SSID hiding, and backward compatibility with 802.11b/g devices.

FAQs

Q: What wireless security protocols are supported?
A: The device supports WEP (64/128-bit), WPA, WPA2, and 802.1x for Wi-Fi security.
Q: How far can the optical signal transmit?
A: It supports up to 20KM over fiber, suitable for long-distance FTTH/FTTP deployments.
Q: Can multiple Wi-Fi networks be configured?
A: Yes, up to 4 SSIDs can be created to segment users or devices.
Q: What VoIP protocols are compatible with the device?
A: SIP, H.248, and MGCP are supported for interoperability with major softswitch platforms.
Q: What audio codecs are available for voice calls?
A: ITU-T G.711 (narrowband) and G.723.1 (compressed) codecs are supported.
