4-Port GPON OLT Optical for FTTH Access: Comprehensive Overview & Features

Product Overview

Designed to meet the growing demands of Fiber-to-the-Home (FTTH) networks, the 4-Port GPON Optical Line Terminal (OLT) delivers scalable, high-performance connectivity for residential broadband, VoIP, and IPTV services. Built for service providers and enterprises, this OLT combines advanced traffic

Product Model：4-Port GPON OLT

Update Time：2025-03-28

Manufacturer Type：

Traffic：

Fiber Core Count：

Outer Jacket：

Standard：

Inquiry Now

4-Port GPON OLT Optical for FTTH Access: Comprehensive Overview & FeaturesDetailed Introduction

Online Message

MPOnent_zyfDjqtoKweO" relationcommonid="oTKpsYrNohEO" classattr="sitewidget-162f6be7-60af-409f-a195-fbc2d9ed0d20-20240305111950" style="margin: 0px; padding: 0px; font-family: Poppins; font-size: medium; text-wrap-mode: wrap; background-color: rgb(255, 255, 255);">

Product Features

PON Features

SN/SN+Password/LOID/LOIDPassword/LOID+LOID Password authentication modes;

DBA algorithm, and the particle is for 64Kbit/s;

Standard OMCl management function;

ONU batch software upgrade;

PON port optical parameter detection;

Auto registeration ONU bound with default profile

Security Features

User Security

Anti-ARP-spoofing;

Anti-ARP-flooding;

Port lsolation;

MAC address binding to the port and MA Caddress filtering;

Device Security

Support the control layer to prevent a variety of Dos attacks and virus attacks against the CPU;

Hierarchical management and password protectionof users;

SSHv2 Secure Shell;

Network Security

User-based MAC and ARP traffic examination;

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic;

Dynamic ARP table-based binding;

IP+VLAN+MAC+Port binding;

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet;

Port-based broadcast/multicast suppression and auto-shutdown risk port;

DHCP Option82 and PPPoE+ upload user’sphysical location

Service Features

QoS	Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow; CAR(Committed Access Rate),Traffic Shaping and flow statistics; Packet mirror and redirection of interface and self-defined flow; Supports priority marking of ports or custom flows and provides 802.1p, DSCP-priority Remark capability; Super queue scheduler based on port or self-defined flow. Each port/flow supports 8 priority queues and scheduler of SP, WRR andSP+WRR; Congestion Avoidance Mechanism, including Tail-Drop and WRED;
ACL	Standard and extended ACL; Time Range ACL;Flow classification and flow definition based onsource/destination MAC addressVLAN,802.1p, Tos, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port numberprotocol type, etc; packet filtration of L2～L7 deep to 80 bytes of IP packet head;
IPv4	DHCP Relay; DHCP Server; DHCP Snooping; Static Routing;
Multicast	IGMPv1/v2/v3 Snooping; IGMP Fast leave; IGMP Proxy;

Maintenance

Network Maintenance

Port real-time, utilization and transmit/receive statistic

Powerful WEB GUI

Data Logging and RFC 3164 BSD syslog protocol;

Ping

Device Management

Console port, Telnet, SSH management;

Out-band management;

SNMPv1/v2

RMON(Remote Monitoring)1,2,3,9 groups MIB;

SNTP;

Fan management

L2 Features

MAC	MAC Black Hole; Port MAC Limit; 64K MAC(packet exchange chip cache 2MB );
VLAN	4K VLAN entries; Port-based VLAN classification; Uplink VLAN Swap and VLAN Remark;
Spanning Tree	STP/RSTP/MSTP Loop detection
Port	Support link aggregation; Port mirroring;
Service Port	Auto configuration service-port by profile VLAN transparent/tag/stacking/aggregation

Reliability

Loop Protection

Loopback-detection;

Link Protection

RSTP/MSTP(recover-time

Link aggregation (recover-time

Device Protection

1+1 power hot backup;

Product Specification

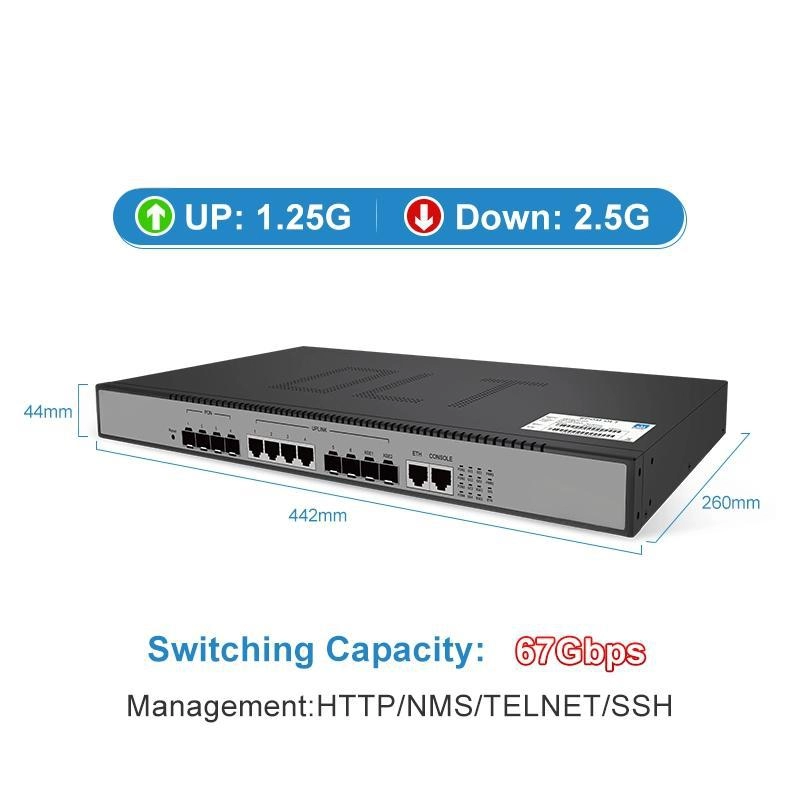

Switching Capacity	67Gbps

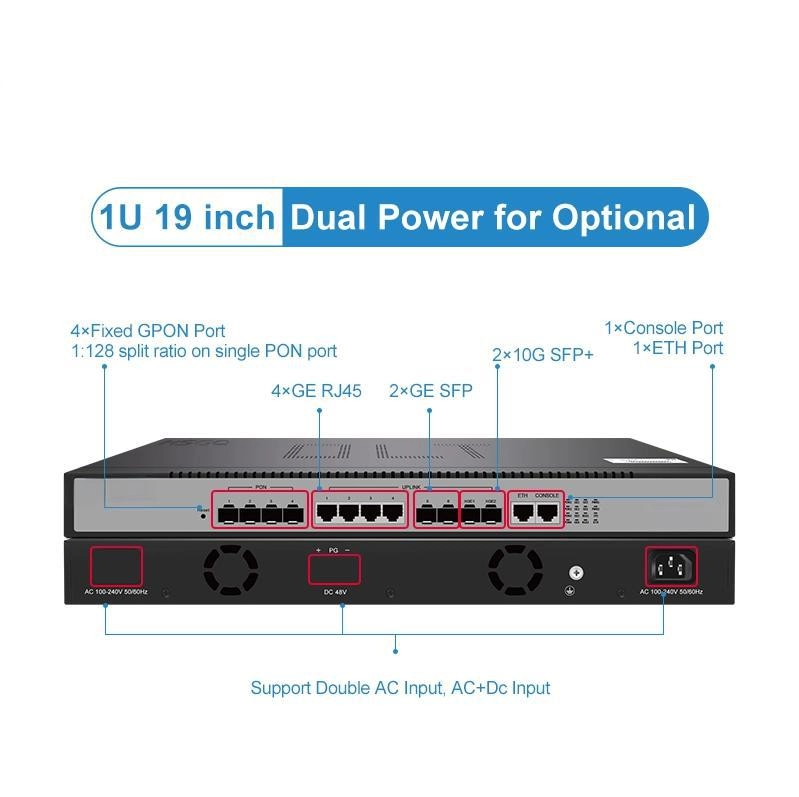

Service Port	4PON port,4GE RJ45,2GE SFP port, 210GE SFP+ port
Redundancy Design	Dual power supply Support double Ac input, double DC input and AC+DC input
Power Supply	AC: input 100～240V 50/60Hz;
Power Consumption	50W
Dimensions (Width x Depth x Height)	440mm ×44mm ×380mm
Weight(Full-Loaded)	≤5kg
Environmental Requirements	Working temperature: -10°C～55°C Storage temperature: -40C～70C Relative humidity: 10%～90%, non-condensing
Max Transmission Distance	Max Transmission Distance: 20km
Max TransmissionDistance	Max splitting Ratio: 1:128

Key Features

High-Capacity Connectivity
- 4 GPON Ports: Each port supports up to 128 ONUs (Optical Network Units), enabling the OLT to manage 512 ONUs in full configuration.
- Symmetric/Asymmetric Rates: Compliant with ITU-T G.984 standards, offering 2.488 Gbps downstream and 1.244 Gbps upstream per PON port.
Advanced Traffic Management
- Dynamic Bandwidth Allocation (DBA): Prioritizes critical services (e.g., video streaming, online gaming) while optimizing bandwidth utilization.
- QoS Hierarchical Scheduling: Supports 8 priority queues per port, ensuring low-latency delivery for voice and video traffic.
- Multicast Optimization: Efficiently delivers IPTV and video-on-demand services via IGMP snooping and VLAN-aware multicast.
Scalable & Resilient Design
- Modular Uplinks: Equipped with 4x SFP+ slots (1G/10G) and 4x RJ45 Gigabit Ethernet ports for flexible backhaul options.
- Dual Power Supplies: Redundant AC/DC inputs with automatic failover, ensuring 99.999% uptime.
- 1U Rack-Mountable: Compact form factor (1U) with low power consumption (
Automated ONU Provisioning
- Zero-Touch Deployment: Auto-discovers, registers, and configures ONUs using serial numbers or MAC addresses.
- TR-069/SNMP Support: Integrates with cloud management platforms for remote monitoring, firmware updates, and diagnostics.
Enhanced Network Management
- VLAN & QoS Mapping: Segments traffic across 4094 VLANs and applies port-based QoS policies.
- Optical Link Diagnostics: Real-time monitoring of optical power, signal-to-noise ratio, and link status.
- High Split Ratio Support: Compatible with 1:128 Splitters, maximizing fiber utilization for FTTH deployments.
