Product Overview
Advantages of Flat Fiber Optic CableExcellent tensile strength and crush-resistance.Compact, easy-to-access design allows for easy installation and handling.Suitable for self-supporting aerial, direct buried, and duct FTTx drop installations.All-dielectric construction eliminates the need for bondin
Excellent tensile strength and crush-resistance.
Compact, easy-to-access design allows for easy installation and handling.
Suitable for self-supporting aerial, direct buried, and duct FTTx drop installations.
All-dielectric construction eliminates the need for bonding or grounding.
Optimized for fiber counts of 2,4, 6, 8, 12and 24 for minimizing deployment costs.
Outer Jacket protects cable from ultraviolet radiation.
| outer diameter (MM) | FRP size (MM) | Cores Number | weight (KGS/KM) | Price(RMB/KM) |
|---|---|---|---|---|
| 3.8 × 8.1 | 2.0 × 2 | 2 | 35.2 | Inquire Now |
| 3.8 × 8.1 | 2.0 × 2 | 4 | 35.3 | Inquire Now |
| 3.8 × 8.1 | 2.0 × 2 | 8 | 35.4 | Inquire Now |
| 3.8 × 8.1 | 2.0 × 2 | 12 | 35.5 | Inquire Now |
* The data below is too long. You can view all the data in horizontal mode on your mobile phone.
| Fiber Count | 1-12 | 16-24 | |||
|---|---|---|---|---|---|
| Loose Tube | Number | 1 | 1 | 2 | |
| Material | PBT | ||||
| Strength Member | FRP Glass Fibers Stick | ||||
| Strength Member Diameter | 2.0 mm | 2.0 mm | 2.0 mm | 2.0 mm | |
| Outer Jacket | Material | HDPE | |||
| Color | Black or Other Colors | ||||
| Thickness (mm) | 1.0 ± 0.1 | ||||
| Maximum Tensile Strength | 1200 N | ||||
| Maximum Crush Resistance | 600 N/100 mm | ||||
| Cable Diameter (mm) ± 0.3 | 3.8 × 8.1 | 3.8 × 8.1 | 4.0 × 9.5 | 4.0 × 9.5 | |
| Net weight (kg/km) ± 10% | 38 | 38 | 40 | 48 | |
| Static Bending Radius | 10 D | ||||
| Dynamic Bending Radius | 20 D | ||||
| Operating Temperature | -40 ℃ ~ +70 ℃ | ||||
| Store/Transport Temperature | -40 ℃ ~ +70 ℃ | ||||
| Installation Temperature | -10 ℃ ~ +60 ℃ | ||||
| NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tube Color | White | |||||||||||
| NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Fiber Color | Blue | Orange | Green | Brown | Gray | White | Red | Black | Yellow | Violet | Pink | Aqua |
| Optical Fiber Type | Attenuation Coefficient (+20 ℃) | OFL Bandwidth | Numerical value | Cable cut-off wavelength | |||||
|---|---|---|---|---|---|---|---|---|---|
| @850 nm | @1300 nm | @1310 nm | @1550 nm | @1625 nm | @850 nm | @1300 nm | |||
| G.652D | / | / | ≤ 0.36 dB/km | ≤ 0.22 dB/km | / | / | / | / | ≤ 1260 nm |
| G.655C | / | / | / | / | ≤ 0.22 dB/km | ≤ 0.24 dB/km | / | / | ≤ 1450 nm |
| G.657A | / | / | ≤ 0.36 dB/km | ≤ 0.22 dB/km | ≤ 0.23 dB/km | / | / | / | ≤ 1260 nm |
| 50 / 125 | ≤ 3.0 dB/km | ≤ 1.0 dB/km | / | / | / | ≥ 500 MHz·km | ≥ 500 MHz·km | 0.200 ± 0.015 NA | / |
| 62.5/125 & mu; m | ≤ 3.0 dB/km | ≤ 1.0 dB/km | / | / | / | ≥ 200 MHz·km | ≥ 500 MHz·km | 0.275 ± 0.015 NA | / |
Prev：ADSS Double-Jacket ,2-288 Cores ,all-dielectric self-support
Return to List Next：ASU80 1-12 Core ,Mini ADSS, Fiber Optical Cable, G652D/G655
Online Message
Optic CableExcellent tensile strength and crush-resistance.Compact, easy-to-access design allows for easy installation and handling.Proven all-dielectric loose tube construction Immune to electromagnetic fields.Optimized for fiber counts of 4, 6, 8, 12and 24 for minimizing deployment costs.Outer Jac
Details
Advantages of Flat Fiber Optic CableExcellent tensile strength and crush-resistance.Compact, easy-to-access design allows for easy installation and handling.Suitable for self-supporting aerial, direct buried, and duct FTTx drop installations.All-dielectric construction eliminates the need for bondin
Details

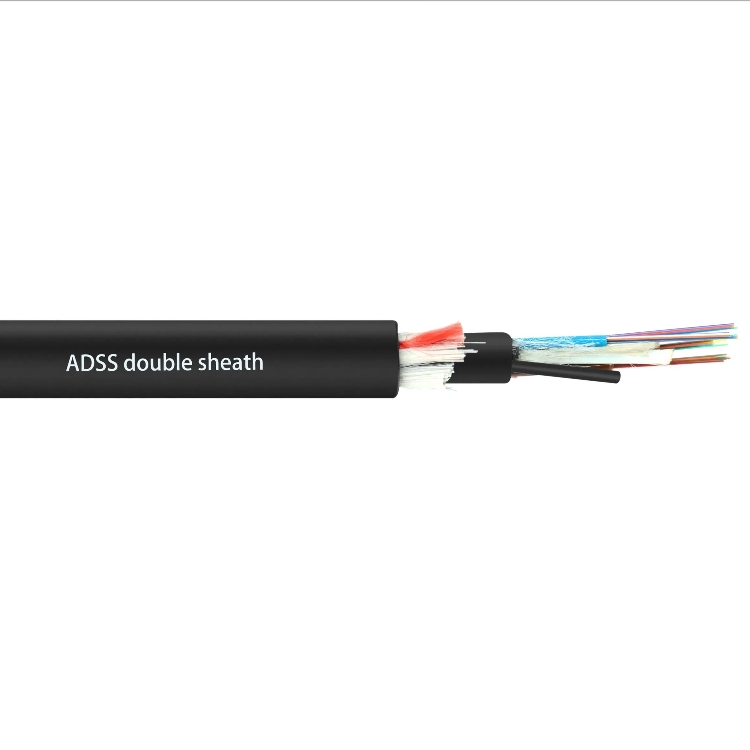

ADSS double-Jacket all-dielectric self-supporting optical cable Description ADSS cable is loose tube stranded fibers 250um, are positioned into a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP as
Details

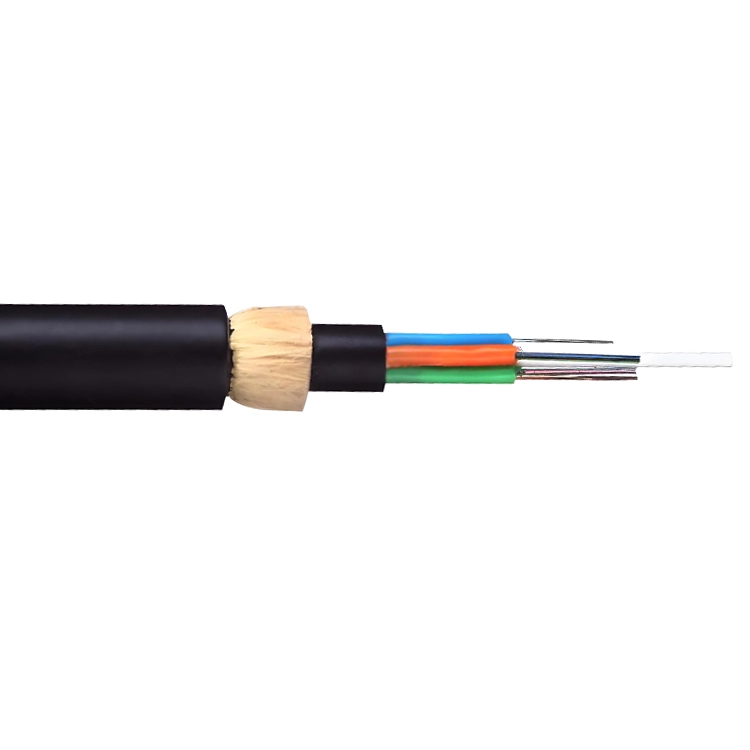

Internal structureADSS Single Jacket All Dielectric Self-supporting Aerial Cable descriptionADSS fiber optic cable is a loose tube stranded fiber optic cable. The 250-um fiber is placed in a loose tube made of high modulus plastic, and the tube is filled with waterproof filler. The loose tube and fi
