Product Overview

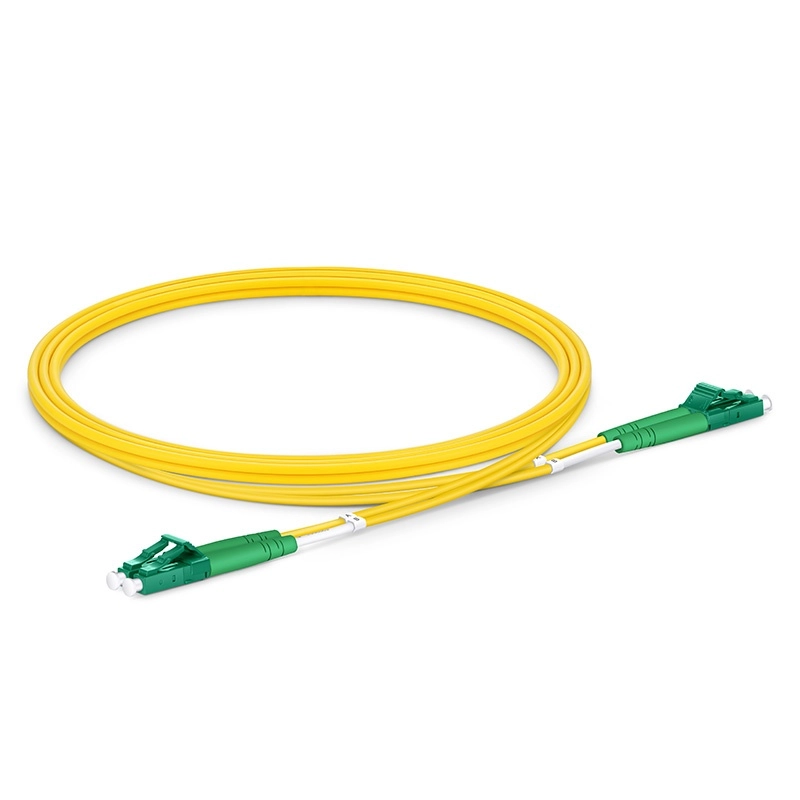

LC APC to LC APC Product details:Fiber optic jumpers are widely used in entry facilities, telecom rooms, data centers, and desktop equipment, providing flexible interconnect and cross-connect solutions for various devices.This OS2 fiber patch cable is designed for high-speed networks and su
Product details:
Fiber optic jumpers are widely used in entry facilities, telecom rooms, data centers, and desktop equipment, providing flexible interconnect and cross-connect solutions for various devices.
This OS2 fiber patch cable is designed for high-speed networks and supports 1G/10G/25G/40G/100G/400G Ethernet connections, especially for long-distance transmission. Its transmission performance is excellent, it can support transmission distances of up to 10 kilometers at 1310nm wavelength, and can extend to 40 kilometers at 1550nm wavelength.
Compared with traditional fiber optic jumpers, this bend-insensitive fiber optic jumper has less signal attenuation when bent or twisted, significantly improving installation efficiency and maintenance convenience, making it particularly suitable for complex wiring environments.
Product parameters:
LC APC Simplex
| Connector A | LC APC Duplex | Connector B | LC APC Duplex |
| Fiber Count | 1 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Polarity | Compliant | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 60/100N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |
LC APC Duplex
| Connector A | LC APC Duplex | Connector B | LC APC Duplex |
| Fiber Count | 2 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 90/150N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |
Prev：ST-ST Singlemode fiber optic cable patch cord, Fiber Jumper
Return to List Next：SC-SC APC Simplex/Duplex Singlemode Fiber Patch Cords，Fiber
Online Message

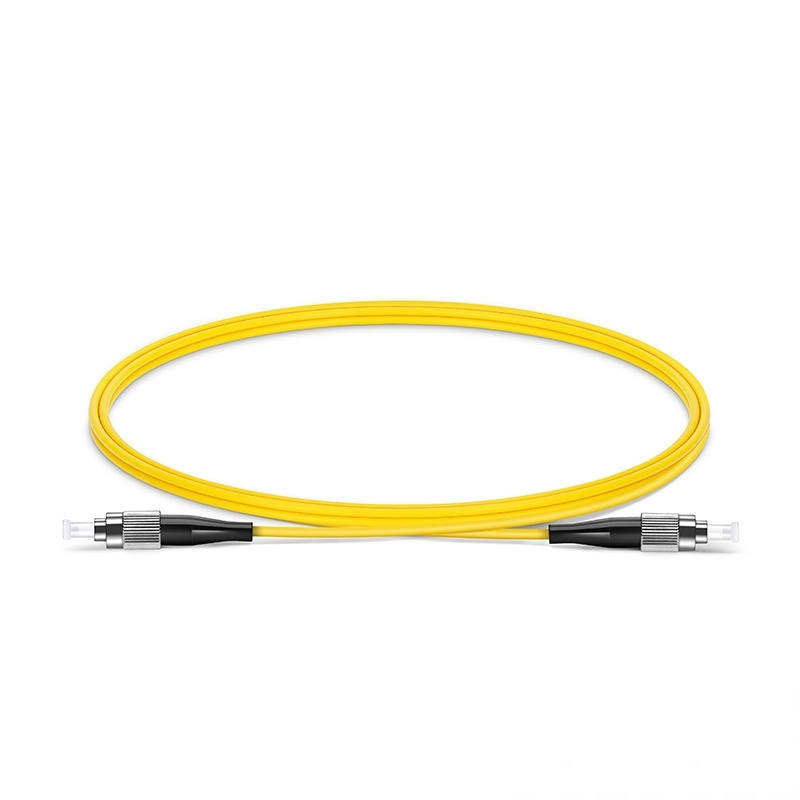

Fiber Patch Cable, FC UPC to FC UPC, Simplex, 1F, OS2, Riser (OFNR), 2.0mmFiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.This OS2 fiber patch cable is ideal for connecting 1G
Details

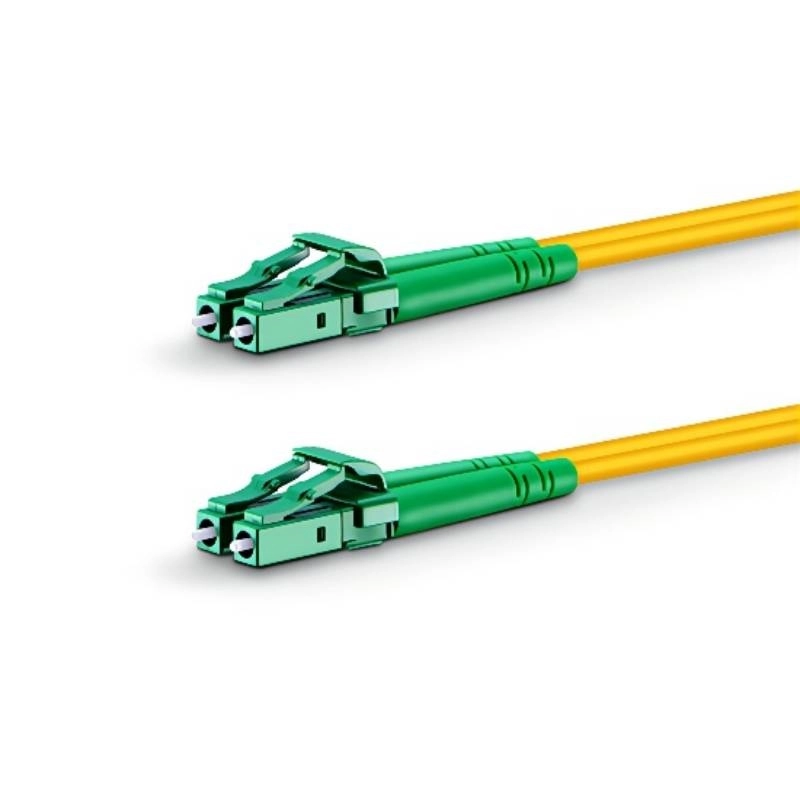

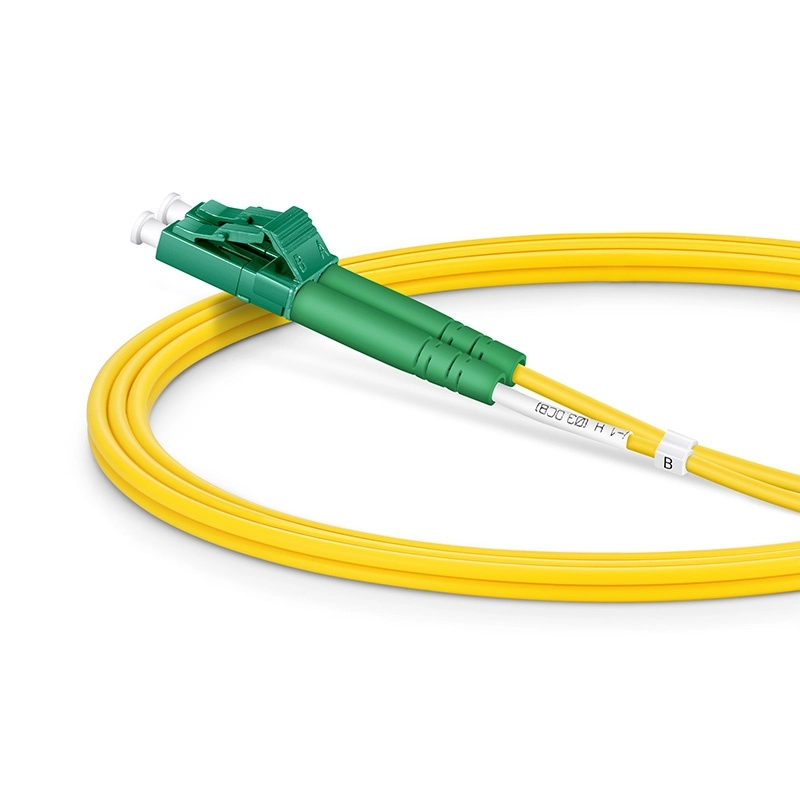

LC-LC UPC Simplex/Duplex Single Mode (OS2), Riser (OFNR), 2.0mm, Tight-Buffered, YellowFiber patch cables are essential for interconnecting and cross-connecting applications in data centers, telecom networks, and enterprise environments. Pre-terminated designs enable fast deployment of Plug & Play s
