Product Overview
Fiber patch cables are essential for interconnecting and cross-connecting applications across data centers, telecom networks, and enterprise environments. Pre-terminated designs enable fast Plug & Play deployment, even for large-scale cabling systems.This OS2 patch cable supports high-speed Ethernet
Fiber patch cables are essential for interconnecting and cross-connecting applications across data centers, telecom networks, and enterprise environments. Pre-terminated designs enable fast Plug & Play deployment, even for large-scale cabling systems.
This OS2 patch cable supports high-speed Ethernet from 1G up to 400G, delivering low signal loss and high bandwidth for long-distance transmission. Its bend-insensitive design reduces attenuation when twisted or bent, ensuring easier installation, reliable performance, and simplified maintenance.
SC UPC Simplex
| Connector A | SC UPC Simplex | Connector B | SC UPC Simplex |
| Fiber Count | 1 Fiber | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| RoHS Compliancy Status | Compliant | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (optical fiber) | 10mm | Min. Bend Radius (fiber cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 60/100N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |

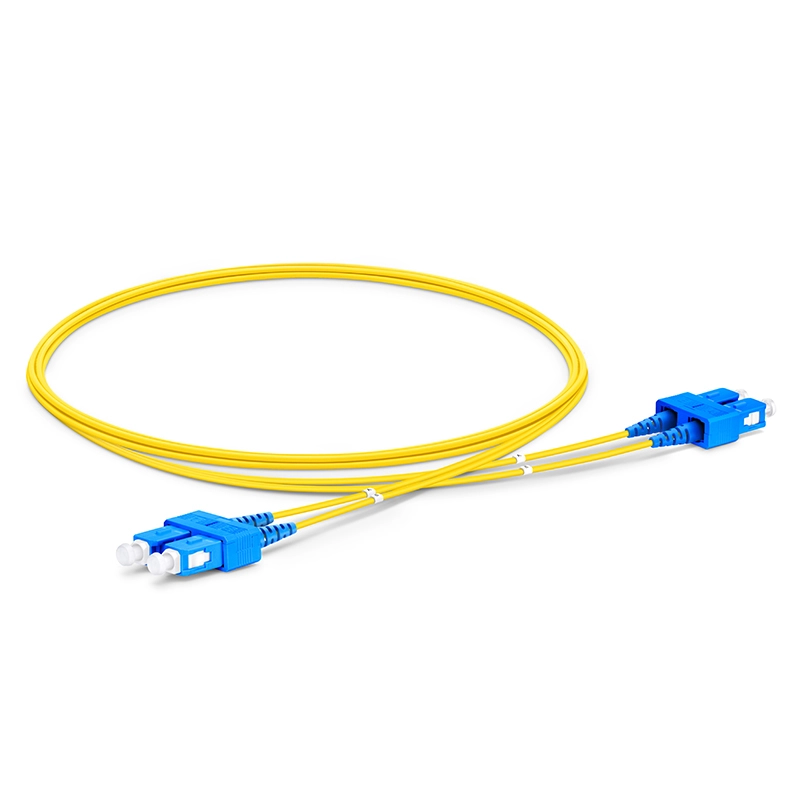

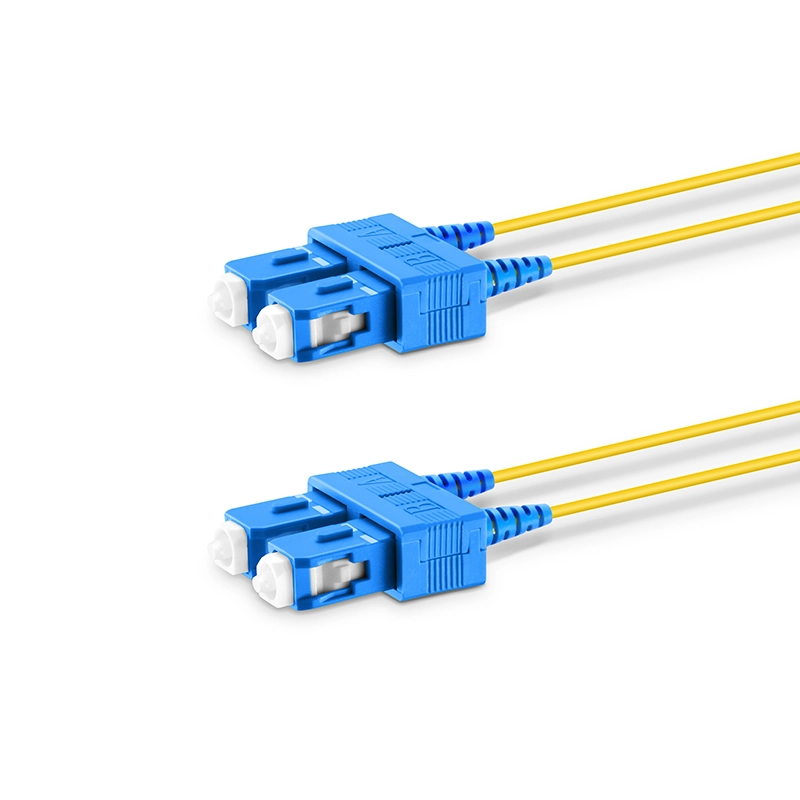

SC UPC Duplex
| Connector A | SC UPC Simplex | Connector B | SC UPC Simplex |
| Fiber Count | 2 Fiber | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| RoHS Compliancy Status | Compliant | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 60/100N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |
